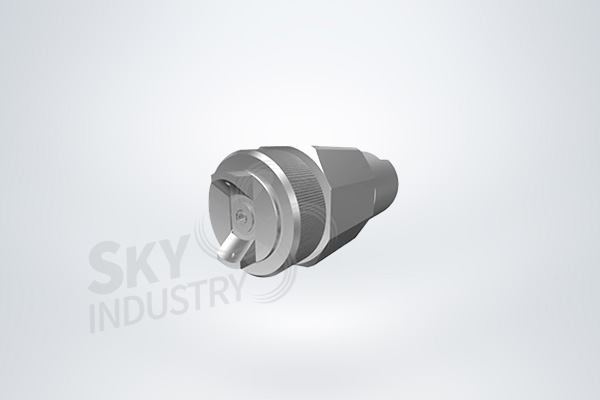

PV Pneumatic atomizing nozzle

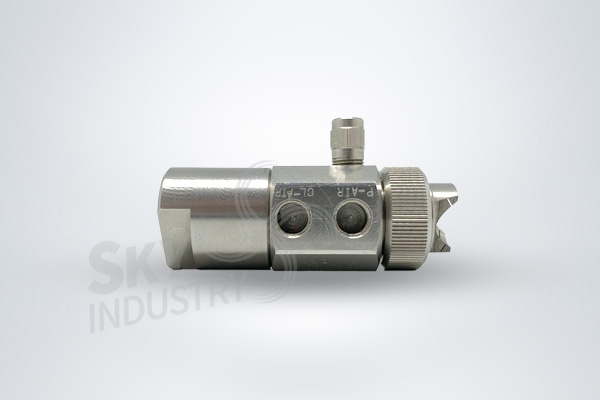

PV-D atomizing spray nozzle

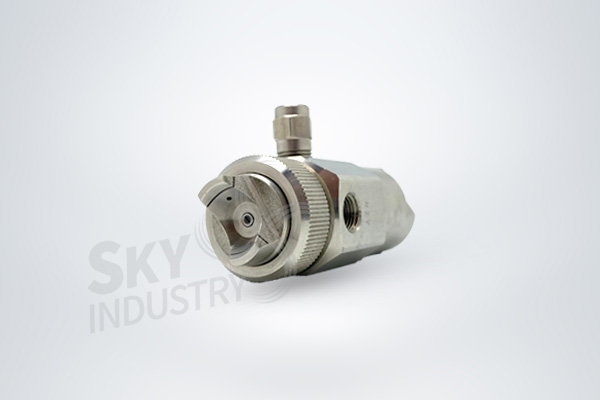

PV-D atomizing spray nozzle

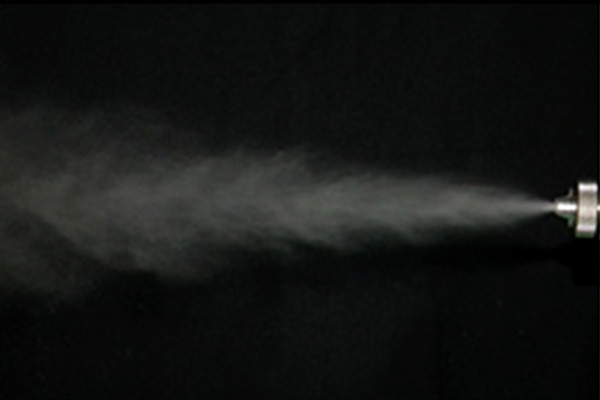

Patter spray PV-D
PV Pneumatic atomizing nozzle
PV-D atomizing spray nozzle
PV-D atomizing spray nozzle
Patter spray PV-D

PV, PNV type Air mist nozzles

Features

  • Wide range flowrate is controlled and adjustable on the value at hand.
  • PV type can change spray pattern freely from full cone to flat spray.
  • No special tool required to overhaul.
  • Simple thorough cleaning

Application

  • Humidification, humidity control, spraying of deodorant, painting, cooling, sterilization, dust deposition
  • Washing, spraying of chemicals, etc.

Pneumatic Atomizing Nozzle

Descriptions

  • Flexible intermittent spray is available by using automatic cylinder..
  • Applicable for high viscosity/easily dissociative liquid.
  • Spray pattern can be arranged from full-cone pattern (20º) to flat pattern (80º) by injection of pattern generation air.
  • Option : Unique ‘clean needle’ eliminate clogging problem.

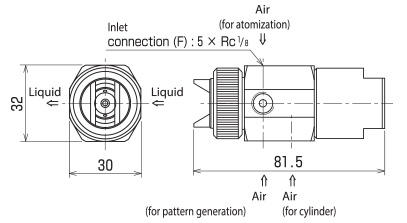

Shapes and dimensions

Specifications

Water pressure Range (MPa)0.01 – 0.04
Air pressure range (MPa)0.2 – 0.5
Water Flow Rate [mL/min] 30 – 1510 (at 0.01 MPa – 0.04 MPa)
Air Flow Rate [L/min (nor)] Misted air 38 – 87  (at 0.3 MPa)
Pattern air 72  (at 0.3 MPa)
Spray angle20° – 80° (variable)
Mean Particle Diameter [μm]20 – 280
Technical Data
