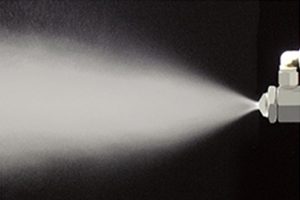

spray pattern MMA
Mini atomizing nozzle Model: MMA
spray pattern MMA

MMA mini atomizing nozzle

Features

  • Available as a pressure spray set-up or siphon spray set-up.
  • Simple structure and easy maintenance.
  • Fine droplets and wide full cone pattern
  • Lowest flow available.
  • Anti-clogging.

Application

  • Cleaning for gate roll, backing roll and size roll.
  • Prevention of excessive “size agent” build up.
  • Canvas chemical washing of dryer parts.
  • Humidity regulation, Drying prevention.
  • Using in lower flow.

Two fluid nozzles

Descriptions

Specifications

Water pressure Range (MPa)Below 0.1
Air pressure range (MPa)0.1 – 0.7
Misting Spray Quantity [mL/min]0.5 – 500
Air Flow Rate [L/min (nor)] 9 – 200 at 0.3 MPa
Spray width (mm)35 – 50 (at 50 mm)
Average Particle Size [μm]Max 30
Technical Data
