Descriptions
MODEL: KBV AIR JET NOZZLE
MODEL: KSV-S AIR JET NOZZLE
Shapes and dimensions
Performance data
Specifications
| Pressure Range (MPa) | 0.1 – 0.7 |
| Air Flow Rate [L/min(nor)] at 0.3 MPa | 64 – 4466 |
| Spray Width (mm) at 0.3MPa | 16 – 25 (at 100mm) |

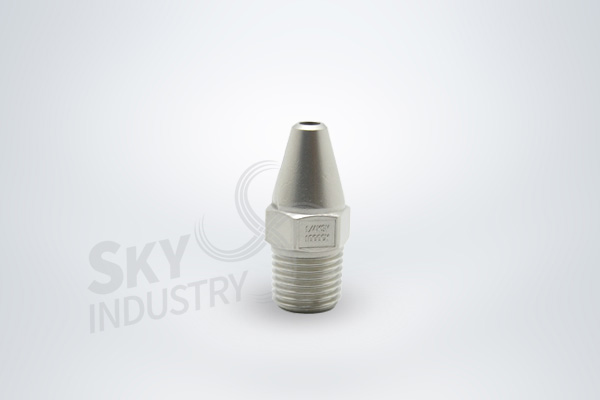

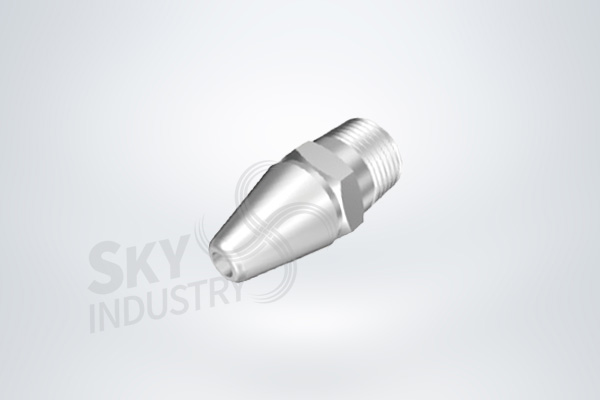

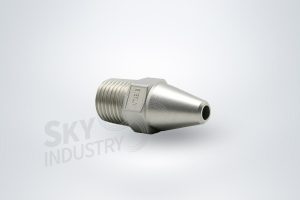

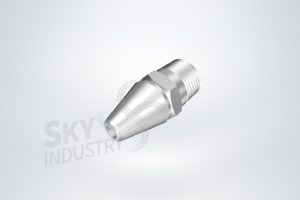

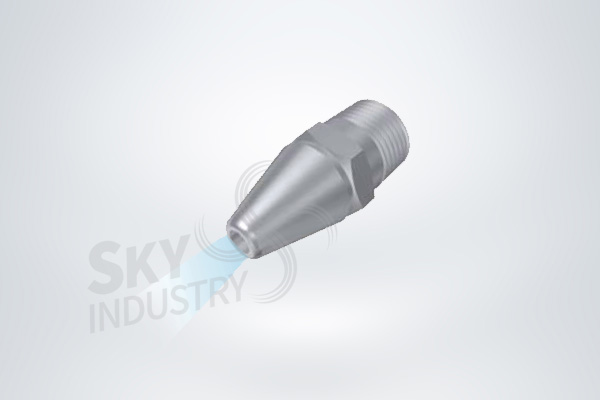

KSV Air Jet Nozzles
Features
- Simple structure and anti-clogging.
- Divergent internal structure allows supersonic blow.
- Tapered nose shape minimizes turbulent flow and reduction in rate.
Applications
- Air purging for roll edge.
- Blowing away paper dust.
- Blowing off moisture, oil
- Drying
