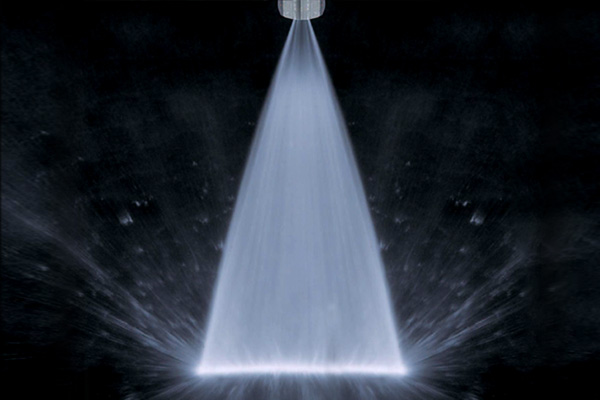

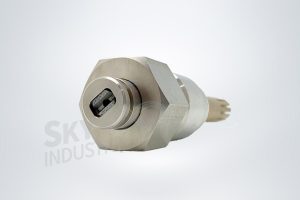

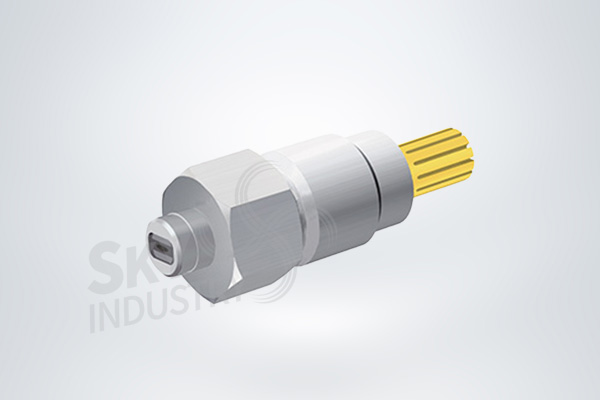

Typical Application of the DNEX
The latest model offers customers the following options:
1. Improved surface quality by keeping same water flow with the current nozzles.
2. Water flow reduction. With the DNEX model, even if the flow rate is reduced by 15%, it keeps the same impact force of the DNX.
EVERLOY
Brand Tungsten Carbide Tip

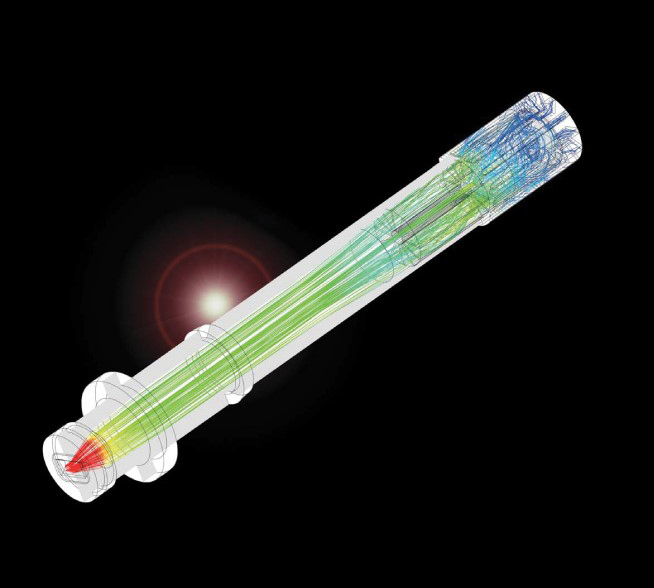

Optimized Internal Flow Path
Significantly Advanced Straightener
Increased Internal Flow Path for
efficient water flow
Increased Internal Flow Path for
efficient water flow

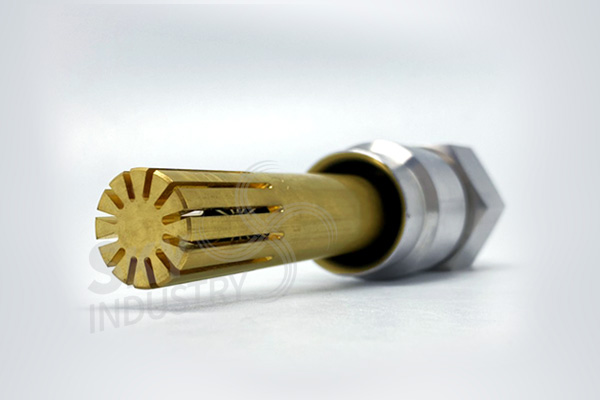

By increasing the volume of the area after the filter slots, the new design dramatically reduces pressure loss resulting in a more effective water flow.
Significantly Advanced Straightener

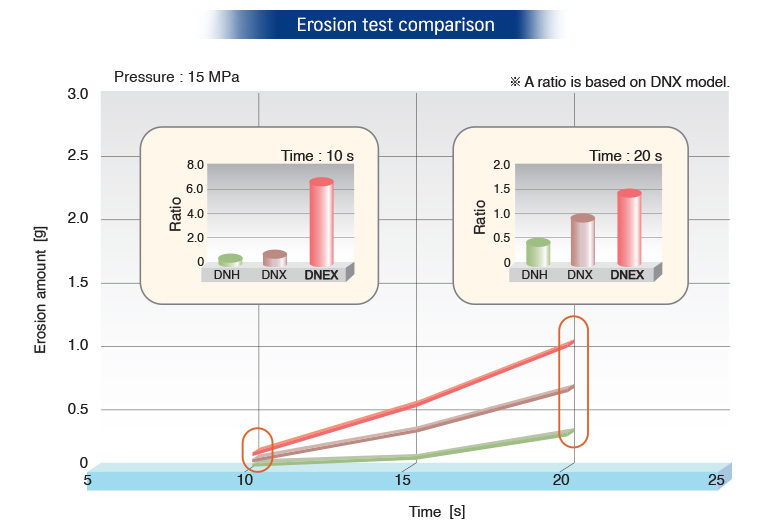

A newly designed straightener creates an effcient laminar flow, contributing to higher impact forces and drastically deeper erosion rates.
Optimized Internal Flow Path
The length of the wider internal flow path was extended while maintaining its structural strength, This new design boosts the effective water flow and reduces pressure loss.
EVERLOY
Brand Tungsten Carbide Tip
As a leading manufacturer of tungsten carbide, EVERLOY over the past 70 years has developed proprietary technology that is applied to extend the life and performance of tungsten carbide tips.
EVERLOY offers the best tips and grades of tungsten carbide, With in-house manufacturing capabilities, production and quality control is tightly controlled and flexible enough to make fast deliveries feasible

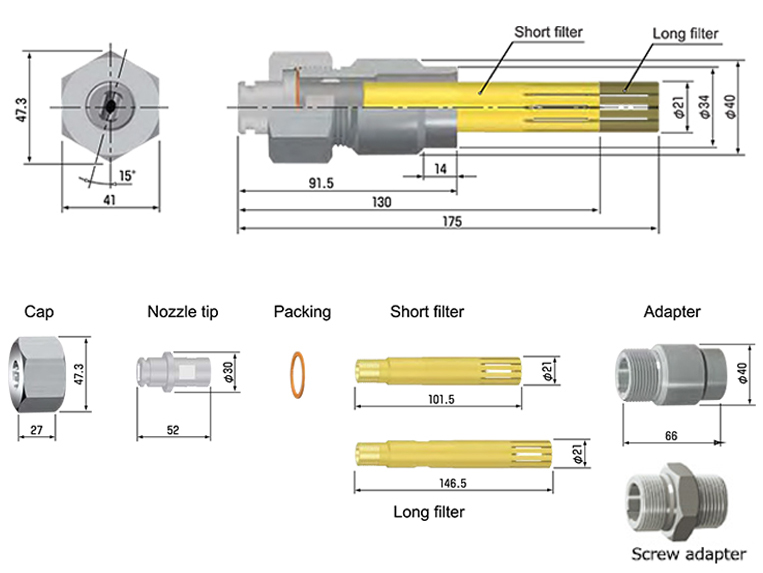

| Part | Material | Weight (g) |
|---|---|---|
| Cap | 303 Stainless steel | 150 |
| Nozzle Tip | Tungsten carbide & 303 SS | 100 |
| Packing | Copper | 4 |
| Short filter | Brass & 303 SS | 170 |
| Long filter | Brass & 303 SS | 215 |
| Weld adapter | 304 Stainless steel | 255 |
| Thread adapter | 304 Stainless steel | 215 |

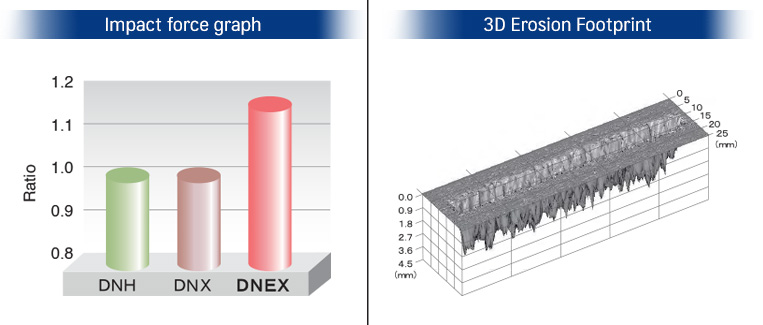

Technical data
